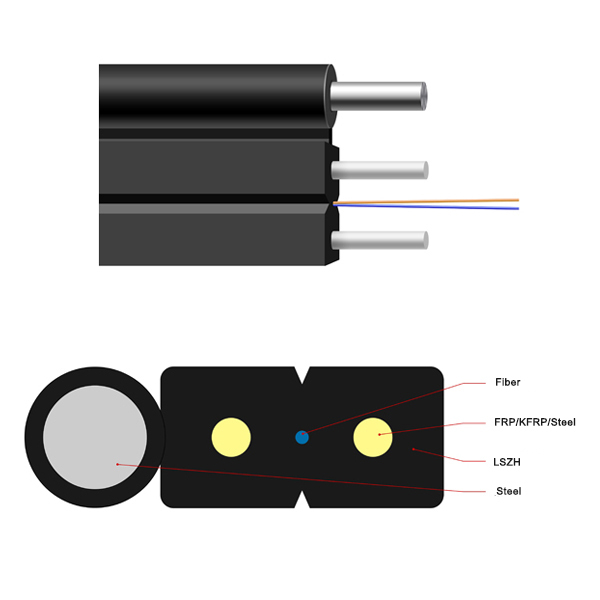

Outdoor FTTH Drop cable, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. The cable is completed with a black or color LSZH sheath.
FIRSTFIBER TECHNOLOGIES DROP CABLE 1C G.657A1 SM LSZH ****M printed on cable

Features
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
- Simple structure, light weight and high practicability
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke, zero halogen and flame retardant sheath

Standards
Complies with Standard YD/T 1997-2009

Optical Characteristics

		G.652	G.655	G.657	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm	-	-	-	≤3.5B/km	≤3.5B/km
	@1300nm	-	-	-	≤1.5B/km	≤1.5B/km
	@1310nm	≤0.40/km	≤0.4/km	≤0.3/km	-	-
	@1550nm	≤0.30/km	≤0.30/km	≤0.25/km	-	-
Bandwidth (Class A)	@850	-	-	-	≥500MHZ·km	≥20MHZ·km
Bandwidth (Class A)	@1300	-	-	-	≥1000MHZ·km	≥600MHZ·km
Numerical Aperture	-	-	-	-	0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	-	≤1260nm	≤1480nm	≤1260nm	-	-

Physical Perfermence

Fiber Count	Cable Diameter (mm)	Cable Weight(Kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/Short Term (N/100m)	Bending Radius Static/Dynamic (mm)
1	2.0×5.0	20	100/200	1000/2200	15D/30D
2	2.0×5.0	20	100/200	1000/2200	15D/30D
4	2.0×5.0	20	100/200	1000/2200	15D/30D
6	2.0×5.0	21	100/200	1000/2200	15D/30D
8	2.0*5.0	23	100/200	1000/2200	15D/30D
12	2.0*5.0	25	100/200	1000/2200	15D/30D
